Product Overview

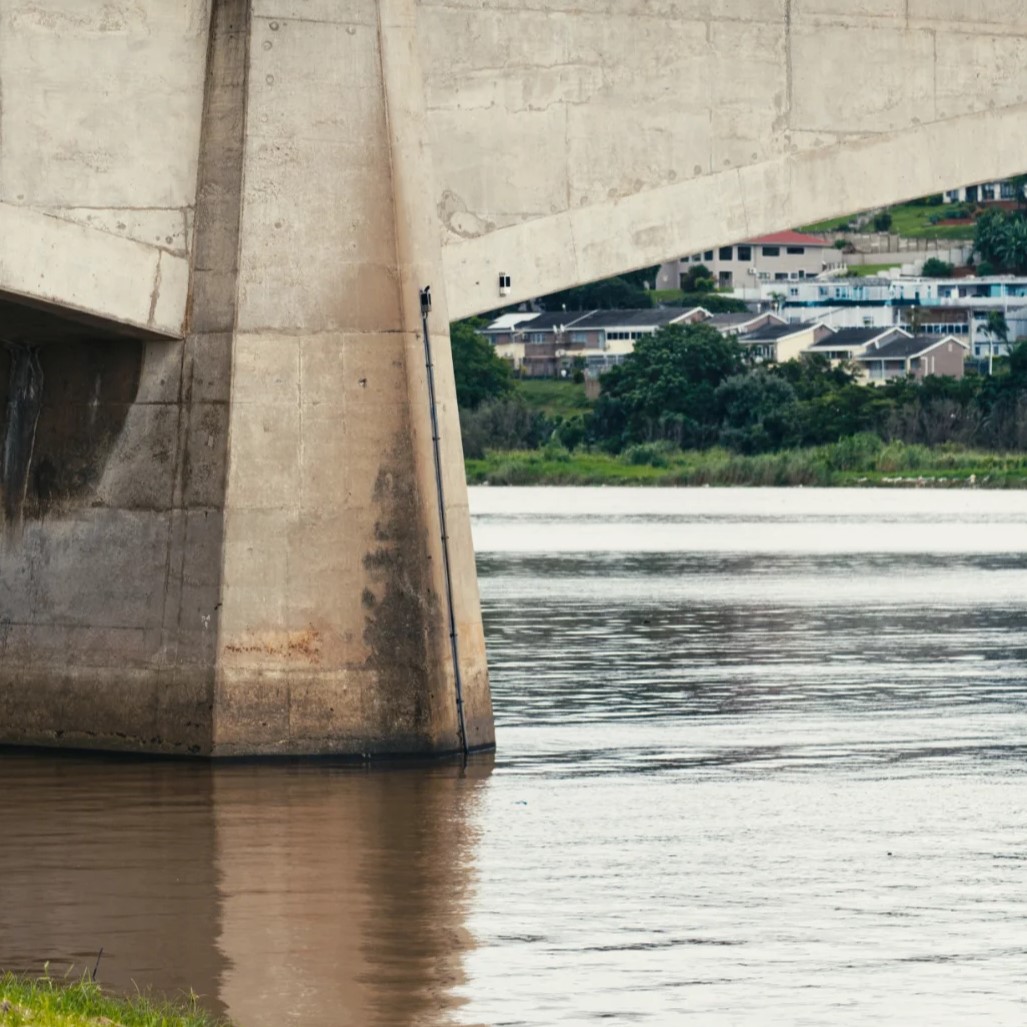

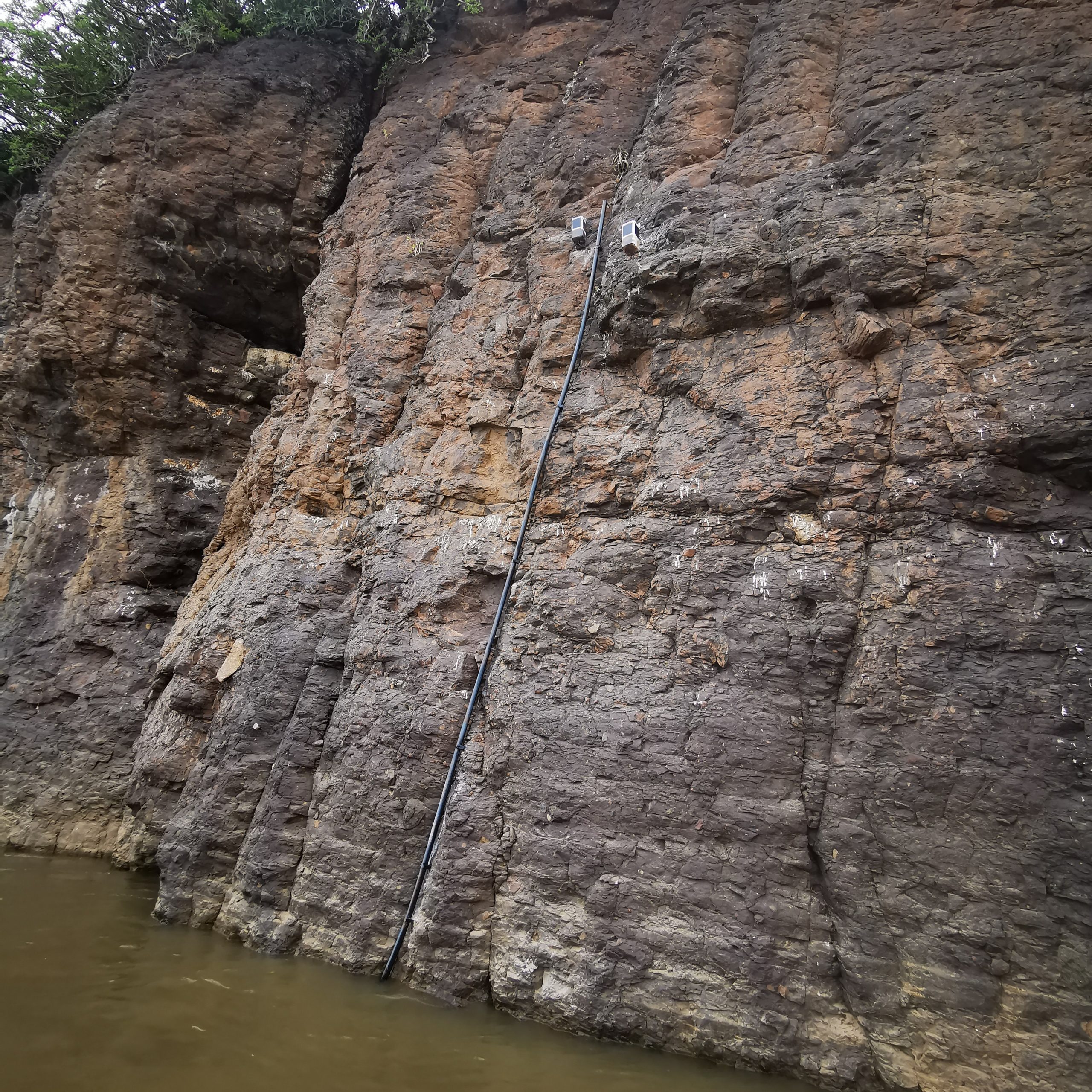

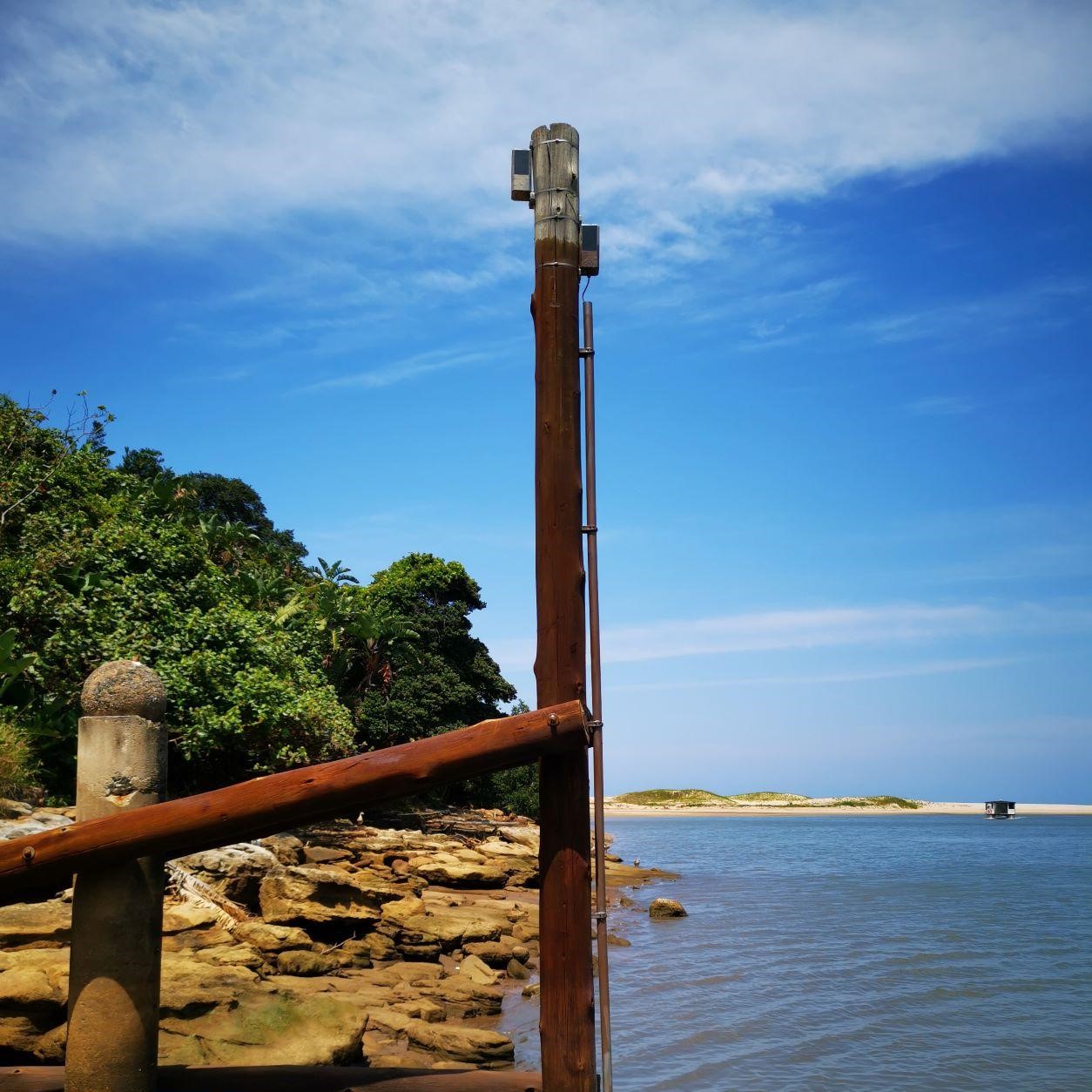

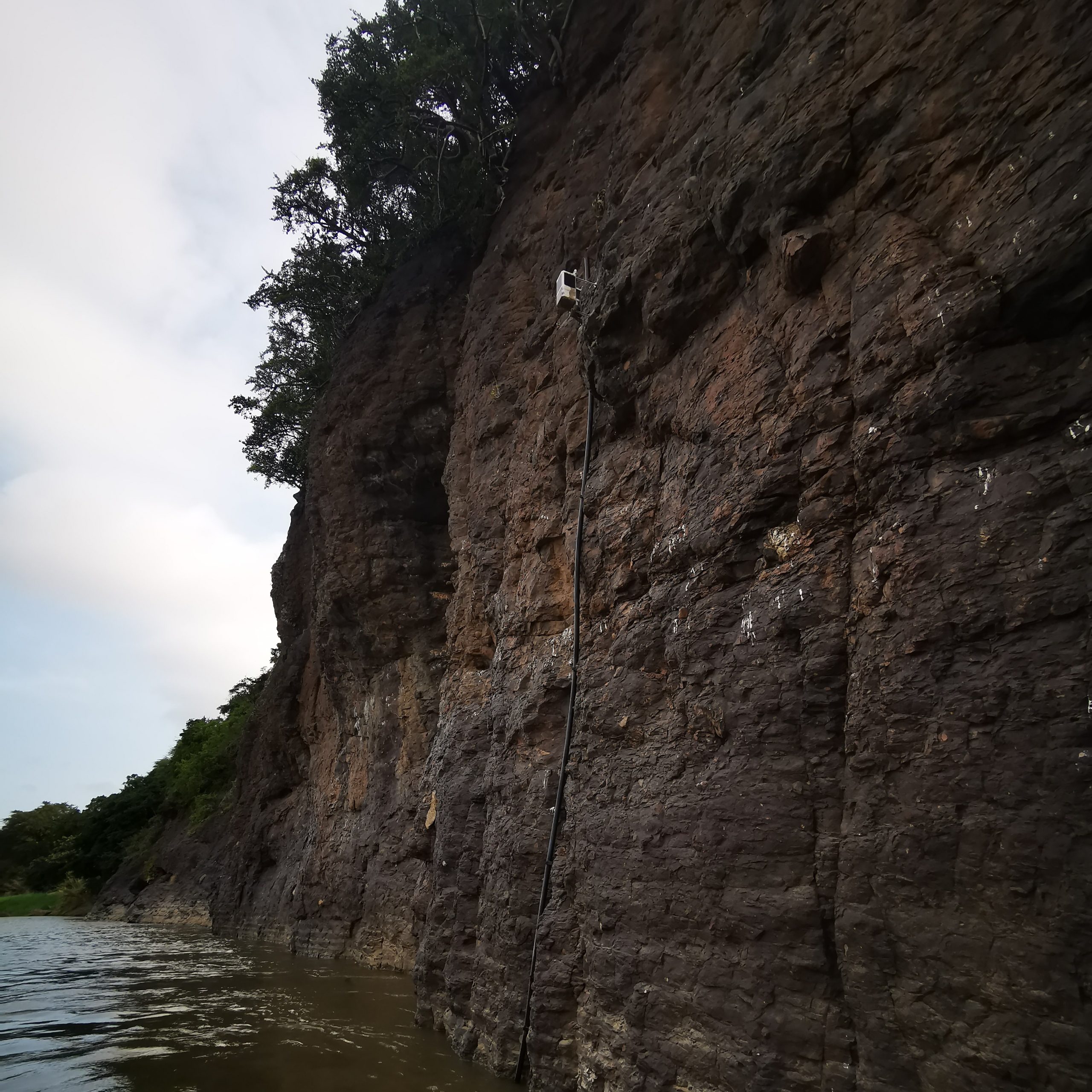

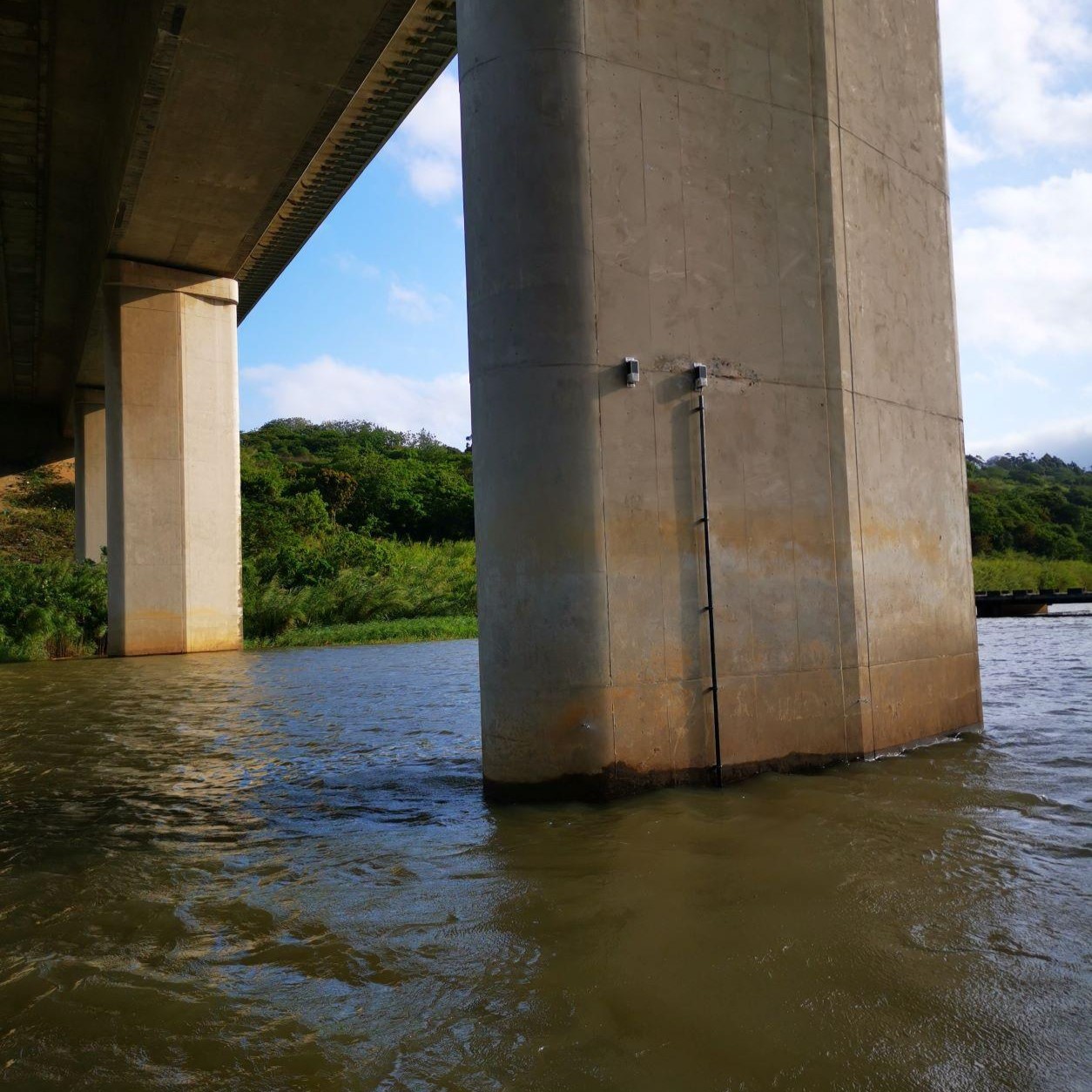

The Pressure Level Gauge is a comprehensive solution for accurate, real-time water level observations. It features a pressure sensor mounted below the water surface and a data logger positioned above it, which can be fixed to structures such as platforms, piers, jetties, bridge decks or poles. Equipped with an industry-grade pressure sensor, it accurately measures water pressure and converts it into referenced water level. Data is transmitted to the Obscape Data Portal and simultaneously stored on an onboard SD card. Solar-powered for sustainability and convenience, it is perfectly suited for monitoring water levels in both natural and man-made water systems.
Key Specifications
- Sensor - Aquaread Leveline Mini
- Solar powered (3 Watt)
- Sensor accuracy - 0.05% FS - 10m (@15°C)
- Range - up to 300 m
- Sampling interval 5 - 60 minutes
- Water level and depth
- Cellular data transfer
