Product Overview
Key Features:
- Connectors configurable with one to 96 contacts
- 316 stainless steel construction standard, other materials available.
- Cable connector plugs and receptacles can be overmolded using neoprene or polyurethane

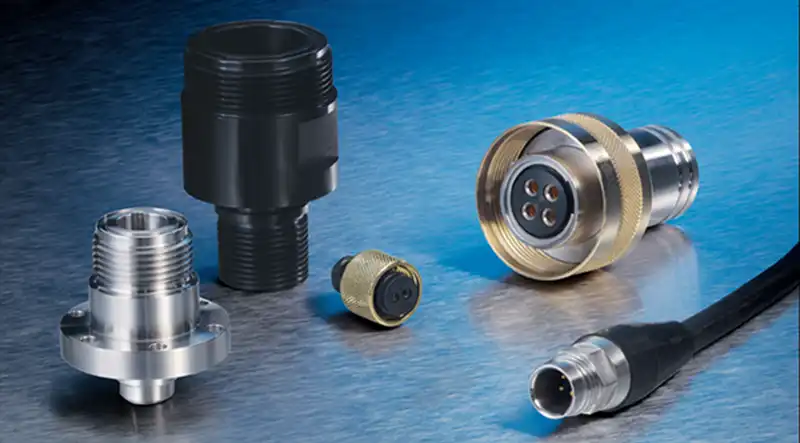

Metal Shell Stainless Steel/Aluminum Series
Designed for rugged military, commercial, aerospace, and marine applications, the metal shell series is a versatile, yet durable choice for power in harsh environments. For high pressure applications, the Metal Shell series can be used in pressures up to 20kpsi.
- 316 stainless steel passivated per QQ-P-35 Type VI with naval
- bronze engaging nut.
- Optional material is (MSA) 6061-T6 Aluminum, hard anodizedper MIL-A-8625, Type III, Class 2.
- Special alloys are available upon request (contact factory).
- Contains a removable glass reinforced epoxy insert (with the exception of the MSSJ/MSAJ).
- Pressure rating in mated condition ranges from 10,000 PSI to 20,000 PSI (higher pressure rating available using special alloy metal shell; please contact factory).
